Smartrise's On-Site Monitoring uses the technology inside every Smartrise elevator controller to automatically collect detailed information about minute-to-minute operations, system events, faults, and operating statuses. More than just a passive database tool, On-Site Monitoring can be easily configured to automatically contact your workstation whenever a problem arises.

On-Site Monitoring communicates with elevators and group dispatchers through Ethernet and TCP/IP. The server resides on the Local Area Network (LAN) with the elevator equipment. You can log on to the server using any workstation running the Smartrise Client application.

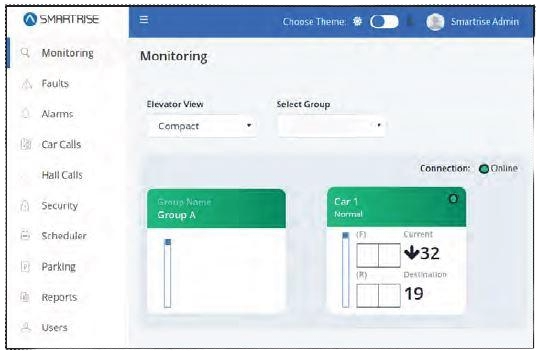

Once connected, all information in the current log is immediately available. Select from preconfigured reports, pick start and end times, and information from the database is presented in a simple, precise format.

On-Site Monitoring allows you to save collected information to a database. Monitoring interface hardware, provided by Smartrise, makes reports available 24/7 at any location in the building via browser.

Benefits

• Automatically alert workstation of system issues and faults

• Retain records of building elevator traffic

• View or print report screens

• Export historical data

• Log maintenance activity

• Collect, store, and recall system information for performance analysis or other needs

Preconfigured Reports
